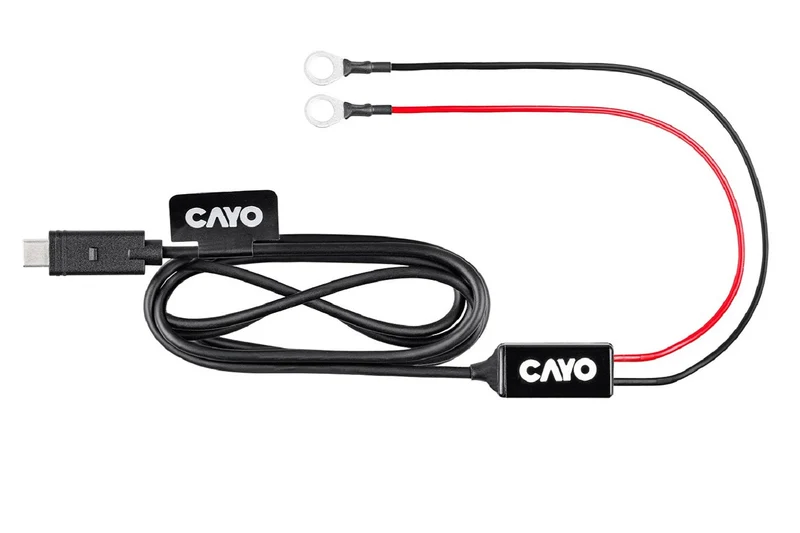

USB-C power adapter Cayo battery.dokk

The smart power adapter for direct connection of the USB-C plug to the vehicle battery.

Function and technical data

• Easy and quick direct connection to the battery terminals
• Automatically turns off when not in use, preventing battery discharge
• No need for complicated search for ignition plus
• Dimensions: 100mm x 10mm x 60mm
• Weight: 52g
• Input voltage: 12.4V – 18V
• Output power: maximum 20W
• Connection: vehicle battery with M6 ringlet to USB-C plug
• Standby current consumption: 200μA
• Temperature range: -20°C to +80°C
• Waterproof - IP69

The battery.dokk is a small, compact voltage converter suitable for direct connection to the vehicle battery

The USB-C output provides a maximum power of 20W.

Unlike devices available on the market, there is no need to search for a switched ignition plus in the vehicle wiring. Therefore, installation can be done without a workshop, and no modifications to the vehicle's wiring, such as cutting wires, are required. The connection is made directly to the battery terminals.

An integrated position sensor activates the battery.dokk upon vibration. After 10 minutes of inactivity, the battery.dokk deactivates itself, protecting the battery from discharge with an extremely low standby current consumption of only 200μA.
