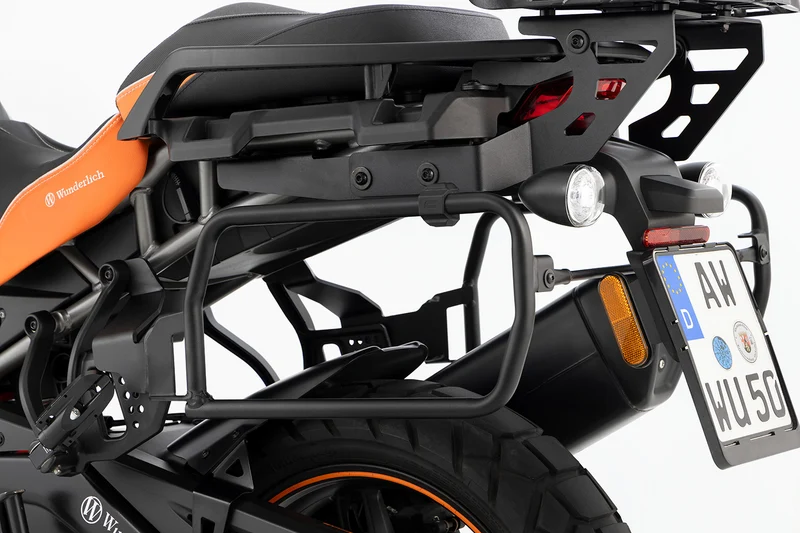

Wunderlich Suitcase carrier X-Rack Pan America 1250

Seamless Luggage Solution for the Harley-Davidson Pan America 1250: The X-RACK Luggage Carrier as a Base for X-CASE Hard Cases or X-BAG Soft Bags

Function and Product Features

• The X-RACK luggage carrier accommodates the X-CASE X36 hard cases and the X-BAGS X32 soft luggage bags with a solid, secure multi-point mounting system
• The classic, model-specific carrier integrates discreetly and harmoniously into the bike's side line
• The 20 mm precision steel tube provides reliable mechanical stability – even when fully loaded
• The solid cross brace that connects the right and left carriers optimises structural stability, which is particularly important when riding off-road
• The low centre of gravity mounting of the cases or soft bags ensures
• perfect handling and optimal riding safety, and
• a narrow silhouette – an advantage when manoeuvring
• less wind resistance and reduced flutter tendency
• Carrier set for right and left side, including the cross brace

Technical Data

• Material
• Precision steel tube, precisely and carefully processed, powder-coated
• Dimensions
• Tube diameter 20 mm
• Maximum Load
• 10 kg per side
• Colour
• Black

Your Wunderlich Advantages

• Tested by Wunderlich
• Made in Europe
• Riding 365
• Wunderlich 60/5
• 60-day return policy – test without risk!
• Plus 5 years warranty

X-RACK – Low Centre of Gravity Mounted Luggage Carrier for Perfect Handling and a Narrow Silhouette

The X-RACK luggage carrier serves as a mount for the X-CASE X36 hard cases or the X-BAG X32 soft luggage bags. The carrier discreetly integrates into the bike's side line.
The 20 mm precision steel tube and multi-point mounting system ensure reliable stability – even when fully loaded to the permissible weight limit and – thanks to the cross brace – off-road. The carrier’s design focused on both component rigidity and optimised weight. With the X-RACK, the X-CASEs and X-BAGs are mounted close to the motorcycle’s centre of gravity, perfecting handling, enhancing riding safety, and creating a narrow silhouette – an undeniable advantage in cities, on ferries, or in the home garage – ultimately everywhere where tight manoeuvring is required. Additionally, this minimises the frontal wind resistance and the flutter tendency of the soft bags. X-RACK – low centre of gravity mounted luggage carrier for perfect handling and a narrow silhouette.
